ASUS board, 305 x 244 mm, 8 rear USB ports. Supports AMD Ryzen 5000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

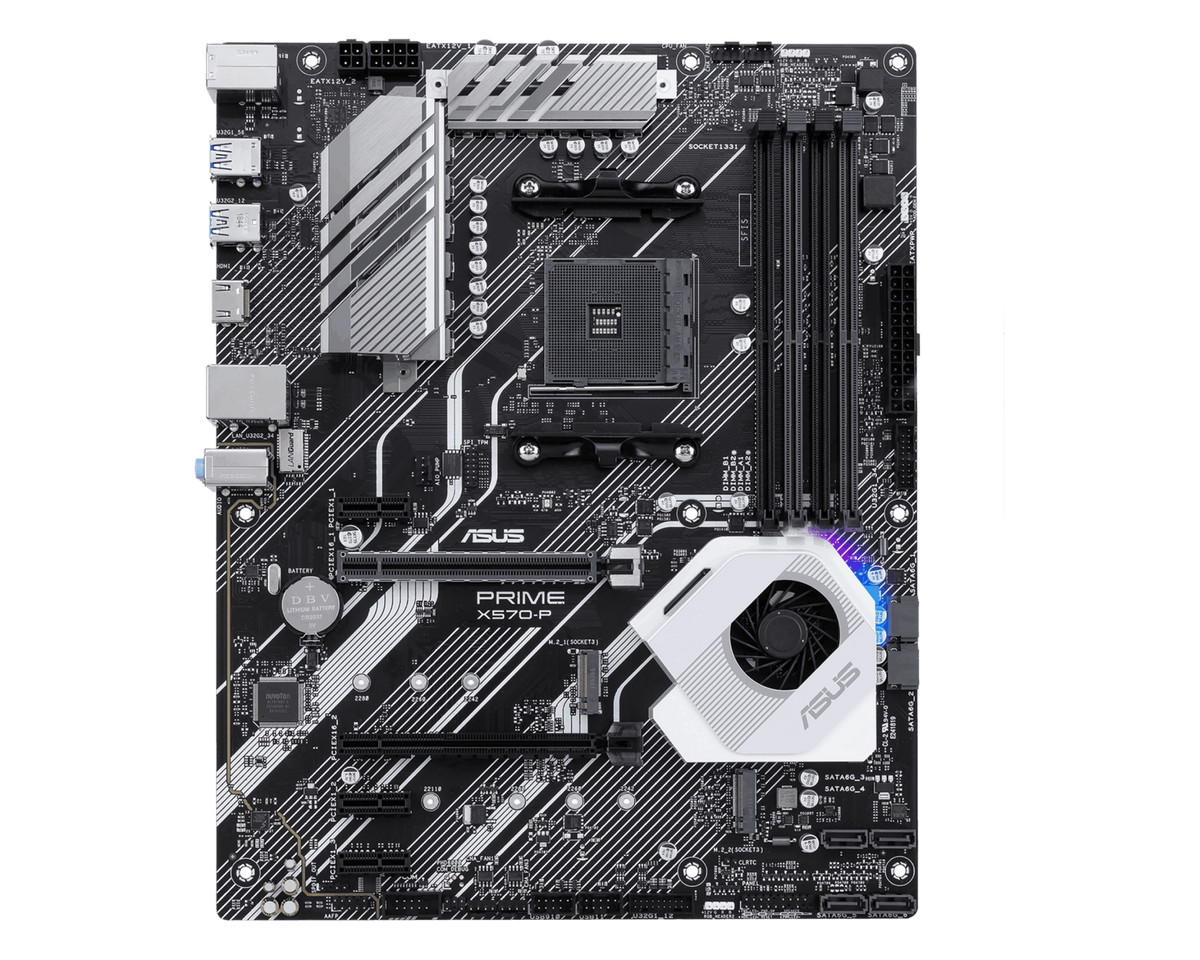

The ASUS PRIME X570-P is an AM4 ATX motherboard built on AMD's X570 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 1 M.2 slots and 1GbE LAN.

  • Platform AM4 · X570 chipset · AMD Ryzen 5000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-2133 to 4400 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 · 1x M.2 (1x PCIe 3.0) · 6x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek RTL8111H) · Realtek audio
  • Rear I/O 8 USB (4x USB-A 10Gbps, 2x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI 1.4b

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
X570
CHIPSET
4 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset X570
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 5000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-2133 to 4400 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 1x M.2 (1x PCIe 3.0)
M.2 Gen 3.0
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek RTL8111H
Wi-Fi None
Display Outputs 1x HDMI 1.4b
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PRIME X570-P
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
