ASUS board, 244 x 244 mm, 7 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

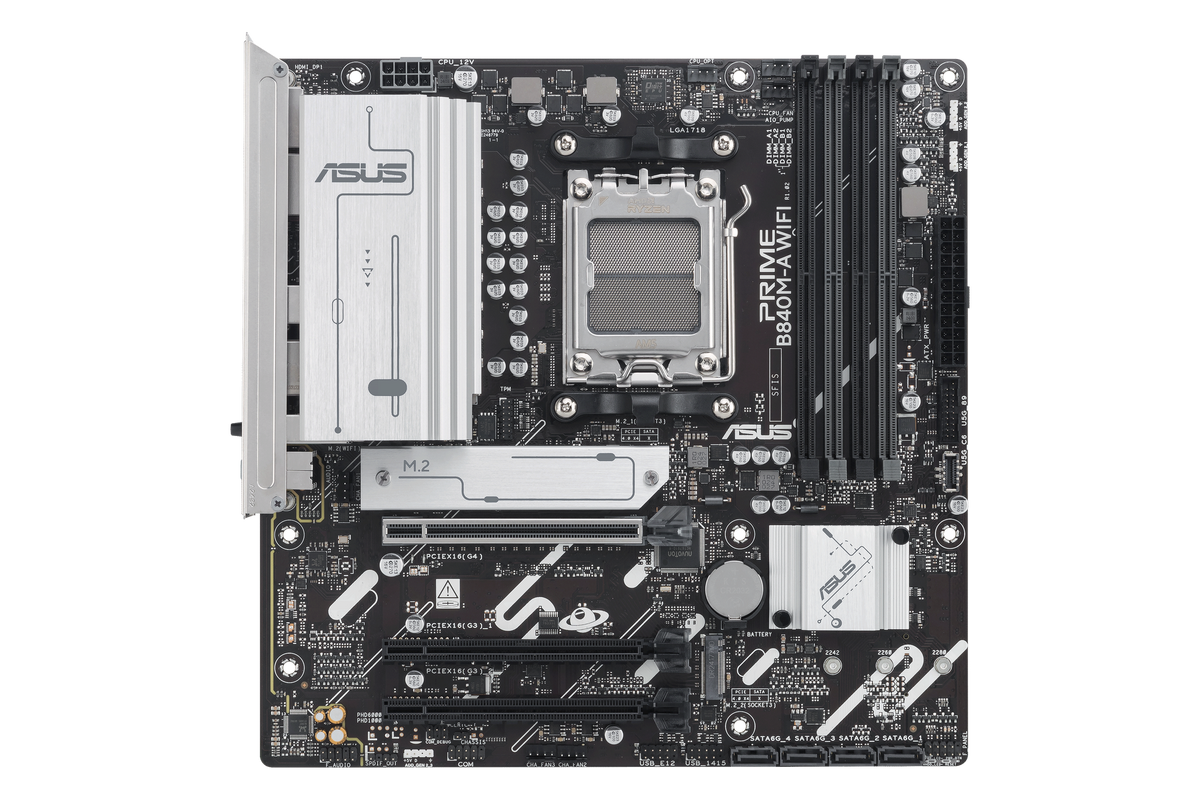

The ASUS PRIME B840M-A WIFI-CSM is an AM5 mATX motherboard built on AMD's B840 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · B840 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7600 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 · 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek audio
  • Rear I/O 7 USB (2x USB 10Gbps, 1x USB 5Gbps, 4x USB 2.0) · 2x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B840
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B840
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7600 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 2x DisplayPort, 1x HDMI
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PRIME B840M-A WIFI-CSM
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
