ASUS board, 244 x 244 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

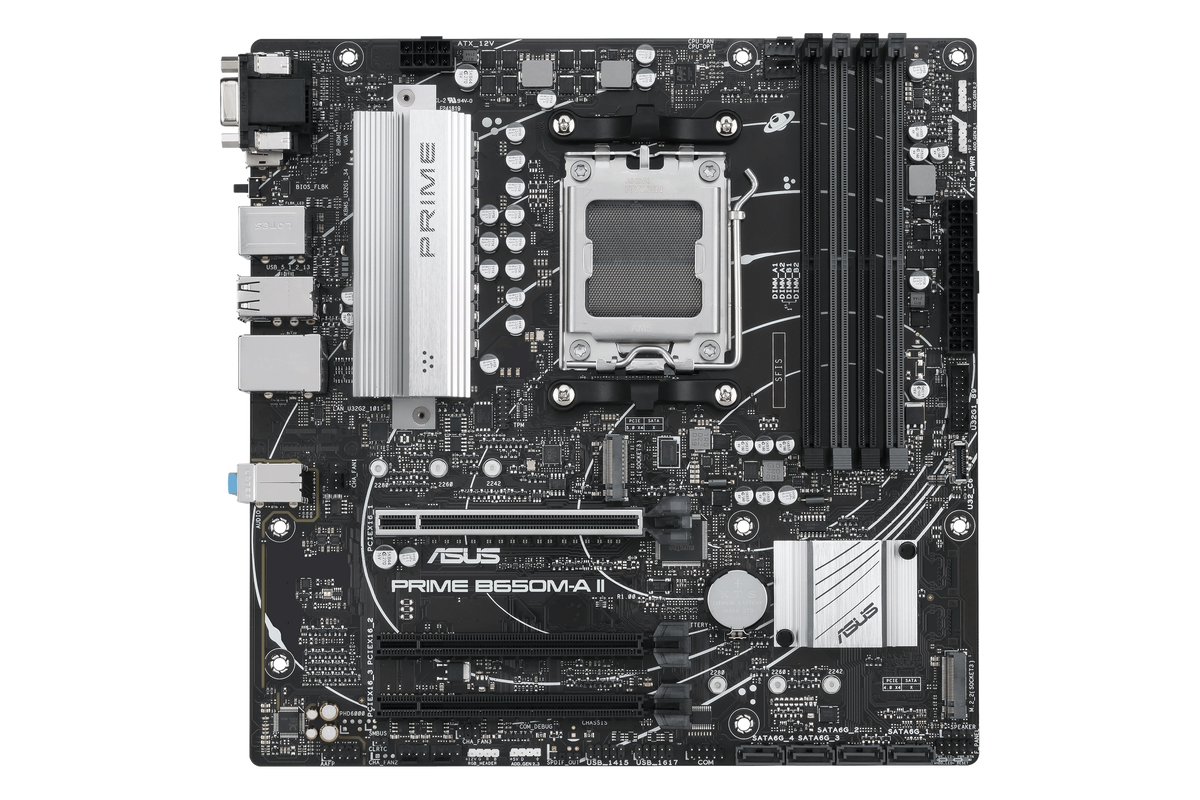

The ASUS PRIME B650M-A II-CSM is an AM5 mATX motherboard built on AMD's B650 chipset, with 4 DDR5 DIMM slots for up to 192 GB, 2 M.2 slots and 2.5GbE LAN.

  • Platform AM5 · B650 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 192 GB · DDR5-4800 to 6400 MT/s (OC)
  • Expansion 3x PCIe 4.0 x16 · 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Realtek audio
  • Rear I/O 8 USB (2x USB 10Gbps, 2x USB 5Gbps, 4x USB 2.0) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 192 GB
Max OC Speed DDR5-4800 to 6400 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 3x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi None
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PRIME B650M-A II-CSM
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
