ASUS unit, single-fan cooling, 2-slot, 267 mm long. Rated 300 W; ASUS recommends a 750 W supply.
- MFR WARRANTY
- 3 Years Limited ASUS → (opens in a new tab)
- NIMBUS COVERAGE
- 1 Year →
- SHIPS FROM
- Low Earth Orbit
- FREIGHT
- Free · contiguous USA

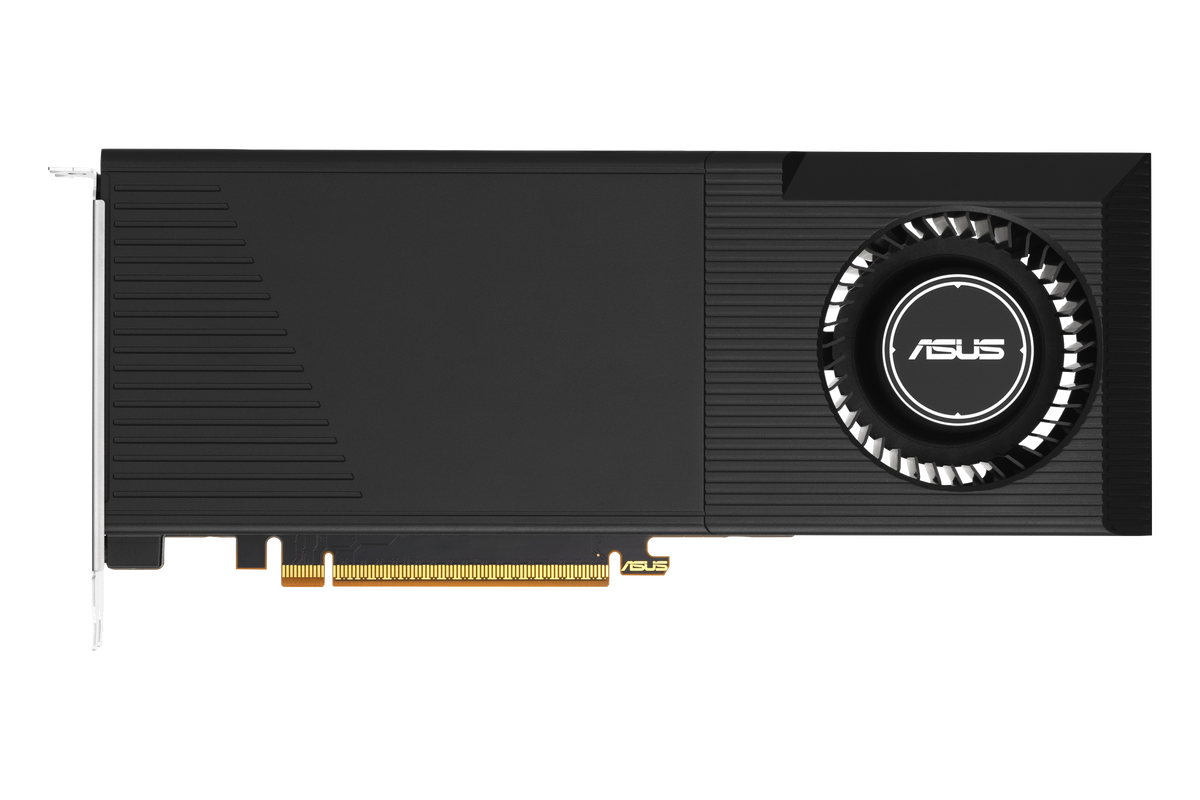

The ASUS TURBO RADEON AI PRO R9700 is a 32 GB GDDR6 graphics card built on AMD's RADEON AI PRO R9700 with 4,096 stream processors, a 2920 MHz boost clock and 4 display outputs over PCIe 5.0.
- Memory 32 GB GDDR6 · 256-bit bus · 20 Gbps · 640 GB/s bandwidth
- Cores 4,096 stream processors · OpenGL 4.6
- Boost 2920 MHz boost · 2350 MHz game
- Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1a · up to 4 displays at 7680 x 4320
- Power 300 W board power · 1x 16-pin · 750 W recommended PSU
3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.
Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.
[ SPEC MANIFEST ]
[ CORE TELEMETRY ]
LIVE FEED
2920 MHz
BOOST CLOCK
32 GB
VIDEO MEMORY
4096
STREAM PROCESSORS
300 W
BOARD POWER
[ PARAMETER TABLE ]
// 29 PARAMETERS
[ CORE ARCHITECTURE ]
SPEC·01
GPU Vendor
AMD
Series
Radeon AI PRO
Stream Processors
4096
Compute Units
64
Ray Accelerators
64
Boost Clock
2920 MHz
Game Clock
2350 MHz
[ MEMORY ]
SPEC·02
Memory (VRAM)
32 GB
Memory Type
GDDR6
Memory Bus
256-bit
Memory Bandwidth
640 GB/s
Memory Clock
20000 MHz (20 Gbps effective)
[ THERMAL & POWER ]
SPEC·03
Board Power (TDP)
300 W
Min PSU
750 W
Power Connectors
1x 16-pin
Cooling
Single Fan
[ DISPLAY & OUTPUTS ]
SPEC·04
Outputs
1x HDMI 2.1b, 3x DisplayPort 2.1a
Max Resolution
7680 x 4320
Max Monitors
4
HDCP
2.3
DisplayPort
2.1a
[ INTERFACE & FORM ]
SPEC·05
Interface
PCIe 5.0 x16
Length
267 mm
Slot Width
2-slot
Form Factor
Full-Height/Half-Length
Dimensions
266.7 x 111.1 x 40 mm
[ FEATURES / API ]
SPEC·06
OpenGL
4.6
